Horizontal Split Case Pump
Axially split double-suction pump for high-flow cooling water and utility duties.
Heavy-duty horizontal split case centrifugal pump featuring an axially split casing and double-suction impeller. Enables complete rotor removal for inspection and maintenance simply by lifting the upper casing half, without disturbing piping or motor alignment.

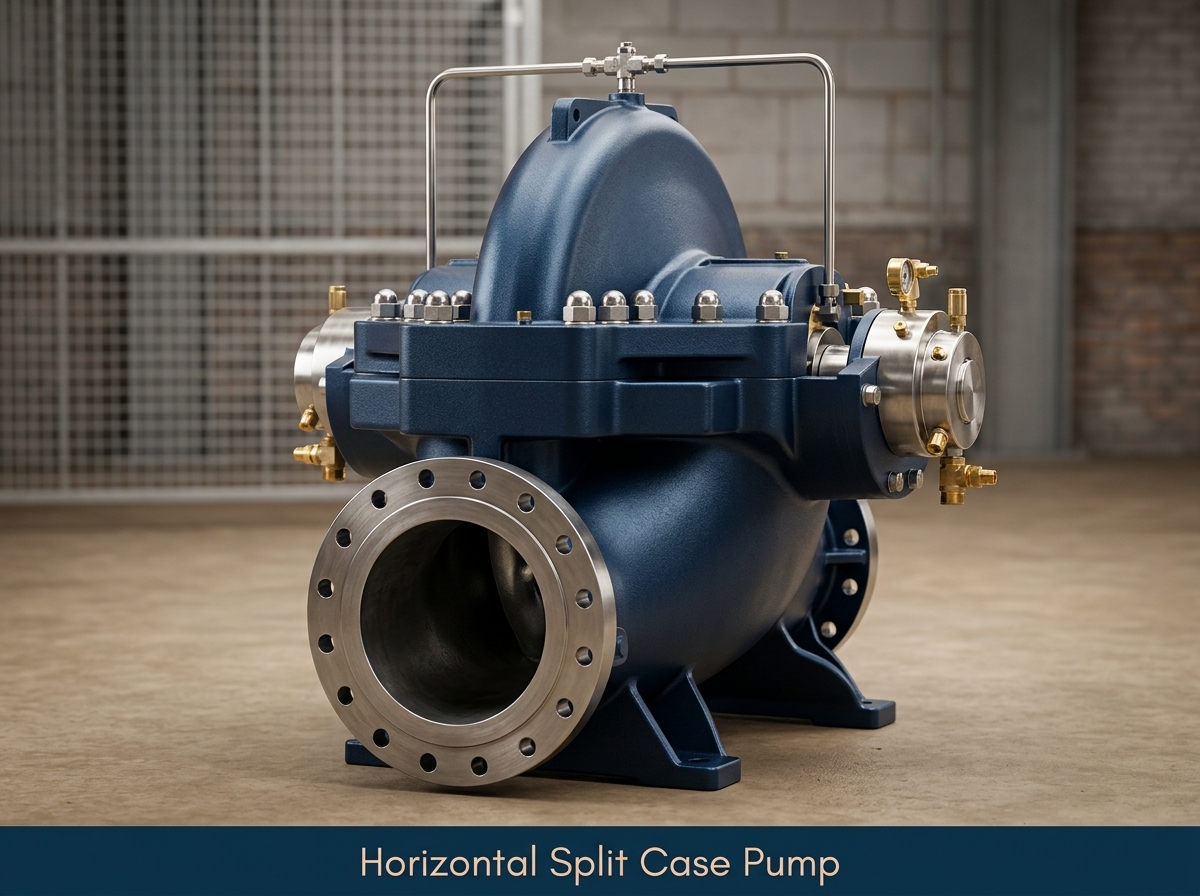

Product photo · Horizontal Split Case Pump
Specifications
Technical profile
- Casing split
- Horizontal axial split, WCB / Cast Iron / Duplex SS
- Impeller
- Double-suction closed impeller for balanced axial thrust
- Flow capacity
- 200 m³/hr to 10,000 m³/hr
- Head range
- 15 meters to 180 meters
- Bearings
- Grease or oil-lubricated heavy-duty ball/roller bearings
- Efficiency
- Up to 88% peak hydraulic efficiency
- Sealing
- Cartridge mechanical seals or stuffing box gland packing
- Seal Flush / Balance Line
- External stainless steel tubing/rod loop with top valve for continuous chamber cooling and pressure balancing
Specifications are typical and vary by variant. Share your duty conditions for an exact recommendation.
Key benefits
Why this product
- In-line piping remains untouched during major rotor maintenance
- Double-suction impeller practically eliminates hydraulic axial thrust
- Exceptionally long bearing and seal life under heavy continuous duty
- High energy efficiency across large cooling tower and plant utility loops
Applications
Typical industries
ChemicalOil & GasFoodDye Manufacturing
