Horizontal Axial Flow Pump
High-capacity, low-head elbow pump for evaporator and crystallizer circulation.
Engineered axial flow propeller pump designed for recirculating massive volumes of liquid at low differential heads. Ideal for chemical evaporators, brine concentration, and industrial drainage.

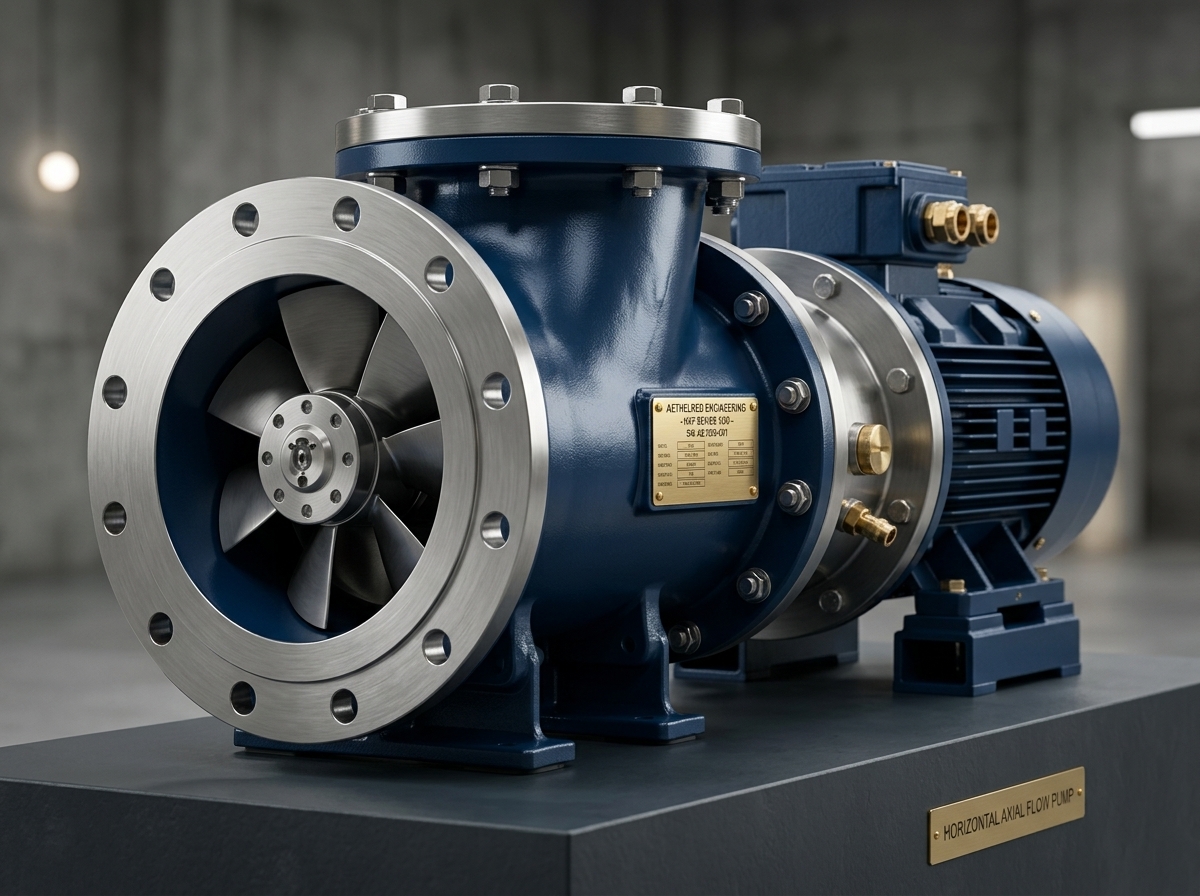

Product photo · Horizontal Axial Flow Pump
Specifications
Technical profile
- Configuration
- Horizontal elbow / foot mounted propeller pump
- Casing
- SS304 / SS316 / Duplex Stainless Steel / Ni-Resist
- Impeller
- High-efficiency axial propeller, fixed or adjustable pitch
- Flow capacity
- 500 m³/hr to 15,000 m³/hr
- Head range
- 1 meter to 8 meters
- Drive
- V-belt or direct gear reducer drive
- Sealing
- Double mechanical seal or hydrodynamic expeller seal
Specifications are typical and vary by variant. Share your duty conditions for an exact recommendation.
Key benefits
Why this product
- Massive flow volumes with minimal power consumption at low heads
- Gentle fluid handling prevents crystal breakdown in chemical evaporators
- Robust shaft support with heavy-duty thrust bearing housing
- Highly corrosion-resistant metallurgy matched to chemical brines
Applications
Typical industries
ChemicalDye ManufacturingFood
