Pumps
Mono-block Pump
Compact, single-shaft pump and motor assembly for space-constrained utility lines.
High-efficiency monoblock centrifugal pump where the impeller is directly mounted on the extended motor shaft. Eliminates coupling misalignment and vibration while saving valuable plant floor space.

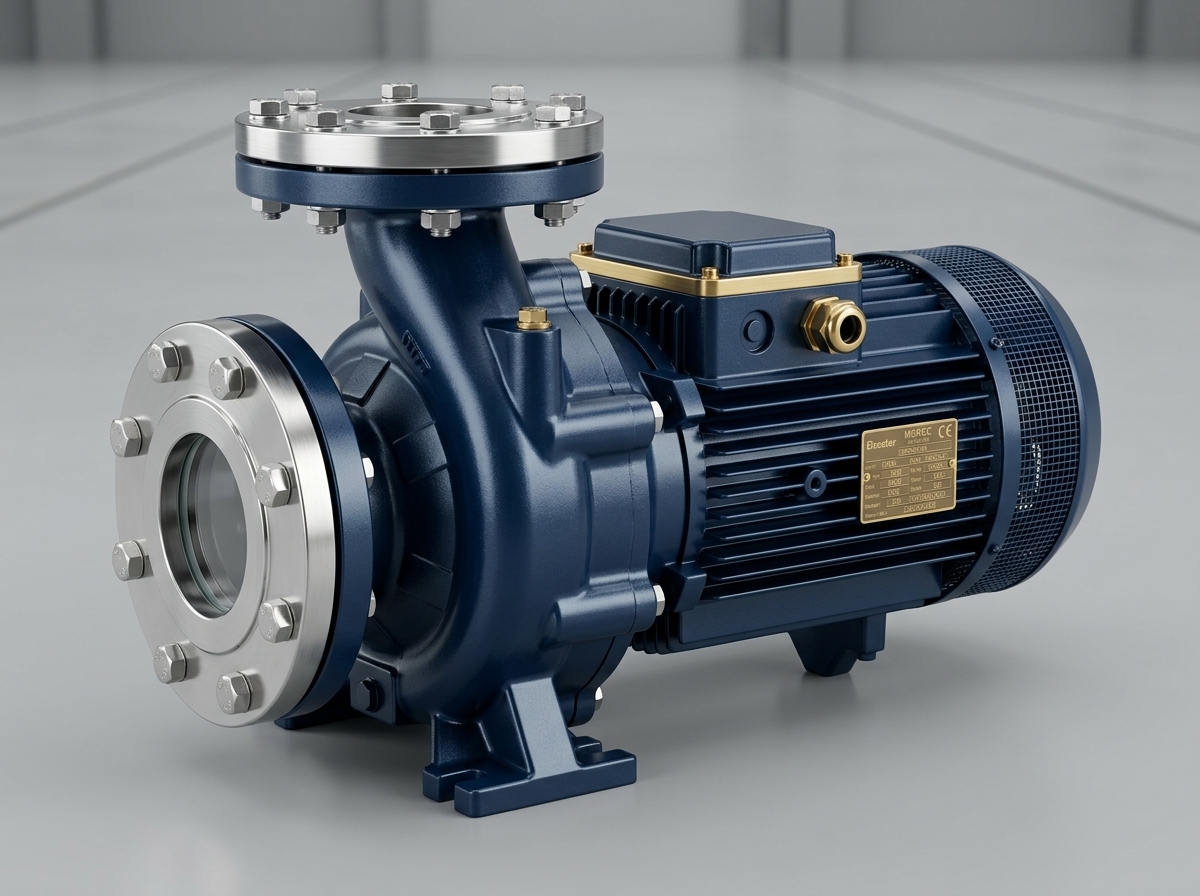

Product photo · Mono-block Pump
Specifications
Technical profile
- Configuration
- Single-stage monoblock, close-coupled
- Casing
- Cast Iron FG260 / SS304 / SS316
- Impeller
- Closed / Semi-open bronze or stainless steel
- Head range
- Up to 65 meters
- Flow capacity
- Up to 120 m³/hr
- Shaft seal
- Mechanical seal (Carbon vs Ceramic / SiC vs SiC)
- Motor rating
- IE2 / IE3 energy efficient, 0.5 HP to 25 HP
Specifications are typical and vary by variant. Share your duty conditions for an exact recommendation.
Key benefits
Why this product
- Compact footprint with zero coupling alignment issues
- Quiet, vibration-free operation across industrial utility loops
- Direct motor drive ensures maximum mechanical power transfer
- Easy maintenance and low lifetime operating cost
Applications
Typical industries
ChemicalFoodBreweriesOil & Gas
Related categories
Need this mono-block pump for your line?
Share your duty conditions and drawings — our team responds with a technical recommendation and a firm quote.
