Agitator Reactor Seal
Top/side entering double seal assembly for chemical reactors and fermenters.
Heavy-duty top and side entering double mechanical seal engineered for chemical reaction vessels, fermenters, and mixing autoclaves. Accommodates severe shaft runout, angular deflection, and thermal expansion.

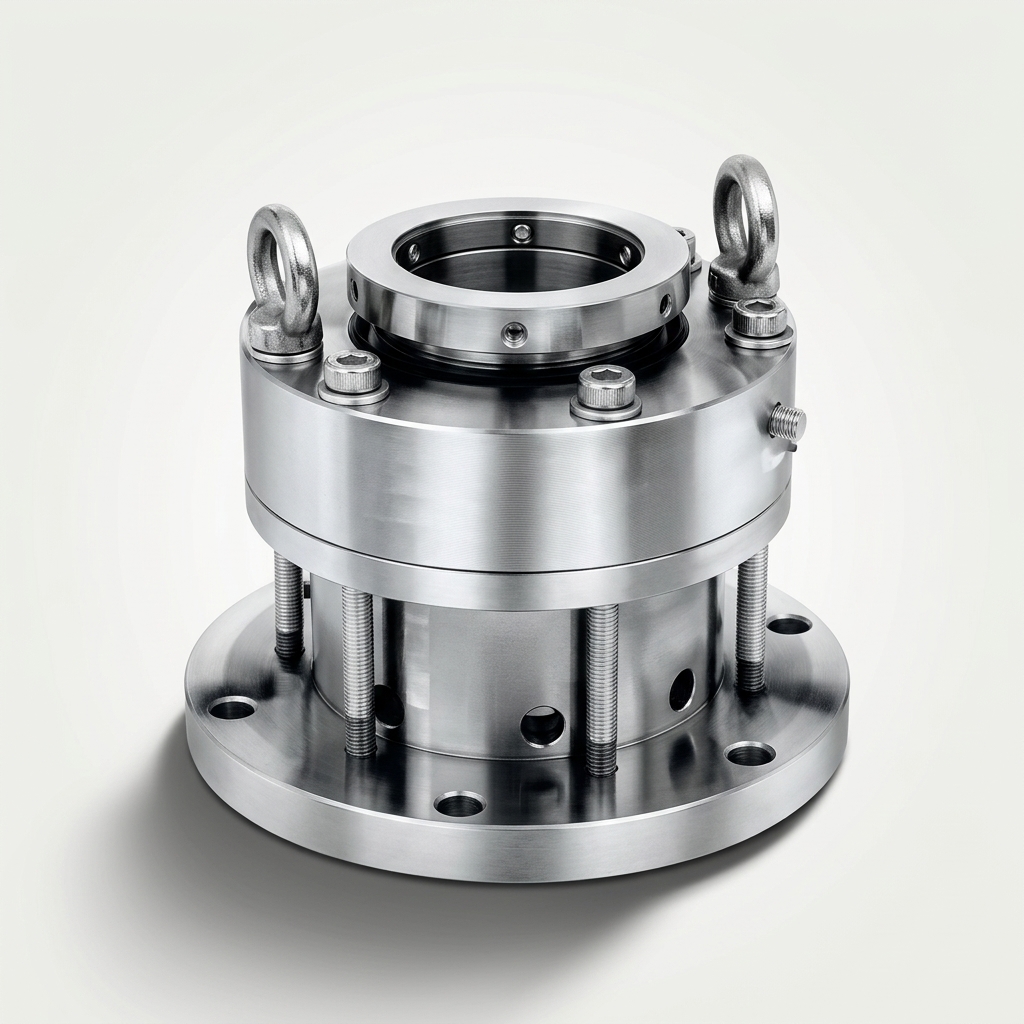

Product photo · Agitator Reactor Seal
Specifications
Technical profile
- Configuration
- Top/bottom entering double seal, dry-running or liquid-lubricated
- Flange mount
- DIN 28138 / DIN 28154 sanitary and glass-lined vessel flanges
- Shaft size
- 30 mm to 200 mm
- Runout tolerance
- Accommodates up to 3.0 mm radial shaft runout & deflection
- Face materials
- Silicon Carbide / Carbon / FDA-grade Tungsten Carbide
- Bearing support
- Optional integrated double floating roller bearing cartridge
- Pressure rating
- Full vacuum (0.1 bar abs) to 25 bar reactor pressure
Specifications are typical and vary by variant. Share your duty conditions for an exact recommendation.
Key benefits
Why this product
- Engineered to survive extreme shaft whipping in high-viscosity polymer mixing
- Dry-running nitrogen barrier options eliminate liquid contamination of pure pharma batches
- Sanitary debris well prevents seal face wear particles from entering product
- Integrated cooling jacket maintains stable face temperature during exothermic reactions
Applications
Typical industries
PharmaChemicalDye ManufacturingFood
